The most massive stroke in the field
The Gilbert Hydraulic Drop Hammer has been designed to meet the needs of the industry by combining power, precision and simplicity. With a drop of 8 feet, it’s a powerful excavator attachment! Incorporating cutting-edge technology, it is equipped with a precision laser gauge that gives the exact height of the mass in real time, offering unrivalled accuracy with every strike.
When it comes to raw power and unrivalled performance, the Gilbert Hydraulic Drop Hammer is the clear winner. Claiming the title of “most powerful hammer” among excavator-mounted hammers, it raises industry standards to new heights.
Using the same control system as our vibratory hammer, it’s quick and easy to work with our DUO!
Features and advantages
Power
- Wearing the crown of "most powerful hammer" among excavator-mounted hammers, it raises industry standards to new heights. It leads the industry with its ability to generate energy on an unprecedented scale, setting a new benchmark for outstanding performance. It can perform refusal test for your work. What's more, this hammer's vertical stroke unlocks unexplored potential to accomplish tasks with greater speed and efficiency.
Simplicity
- Simplicity is the name of the game with the Gilbert Hydraulic Drop Hammer, where mastery of this awesome power is at your fingertips. Imagine being able to control this titanic force with the simplicity of a single operating button. Whether manual or automatic, the intuitive control system adapts seamlessly to your preferences. Setting the desired typing height to meet the specific needs of each task is child's play, thanks to the user-friendly, intuitive digital display. Much more than a simple tool, the Gilbert Hydraulic Drop Hammer becomes a natural extension of your expertise, simplifying the most complex tasks and allowing you to concentrate on completing your projects.
Versatility
- Explore a world of unparalleled versatility with the Gilbert Hydraulic Drop Hammer, a true metamorphosis of the industry. This innovative hammer shines in its ability to adapt to a variety of work situations, wether it's to do refusal test or driving piles. Sharing the same control package as the Grizzly side-grip pile driver, computer ingenuity comes into play to automatically detect the equipment in place and seamlessly adjusting parameters, ensuring a smooth and efficient experience.The striking adapter, meanwhile, transforms itself into an industrial chameleon, able to accommodate a dizzying array of products, from sheet piles to beams, tubes to timber posts, and concrete piles.This exceptional versatility ensures that every project finds its ideal tool, without the slightest compromise.
Precision
- Precision is at the heart of every detail of the Gilbert Hydraulic Drop Hammer. Incorporating state-of-the-art technology, this exceptional tool is equipped with a precision laser measurer that delivers the exact height of the mass in real time, offering unrivalled accuracy with every strike. Further enriching this quest for perfection, a state-of-the-art inclinometer tracks the hammer's alignment in real time, guaranteeing optimum precision at all times.With the Gilbert hammer as your partner, uncertainty gives way to confidence, eliminating guesswork and tedious adjustment.

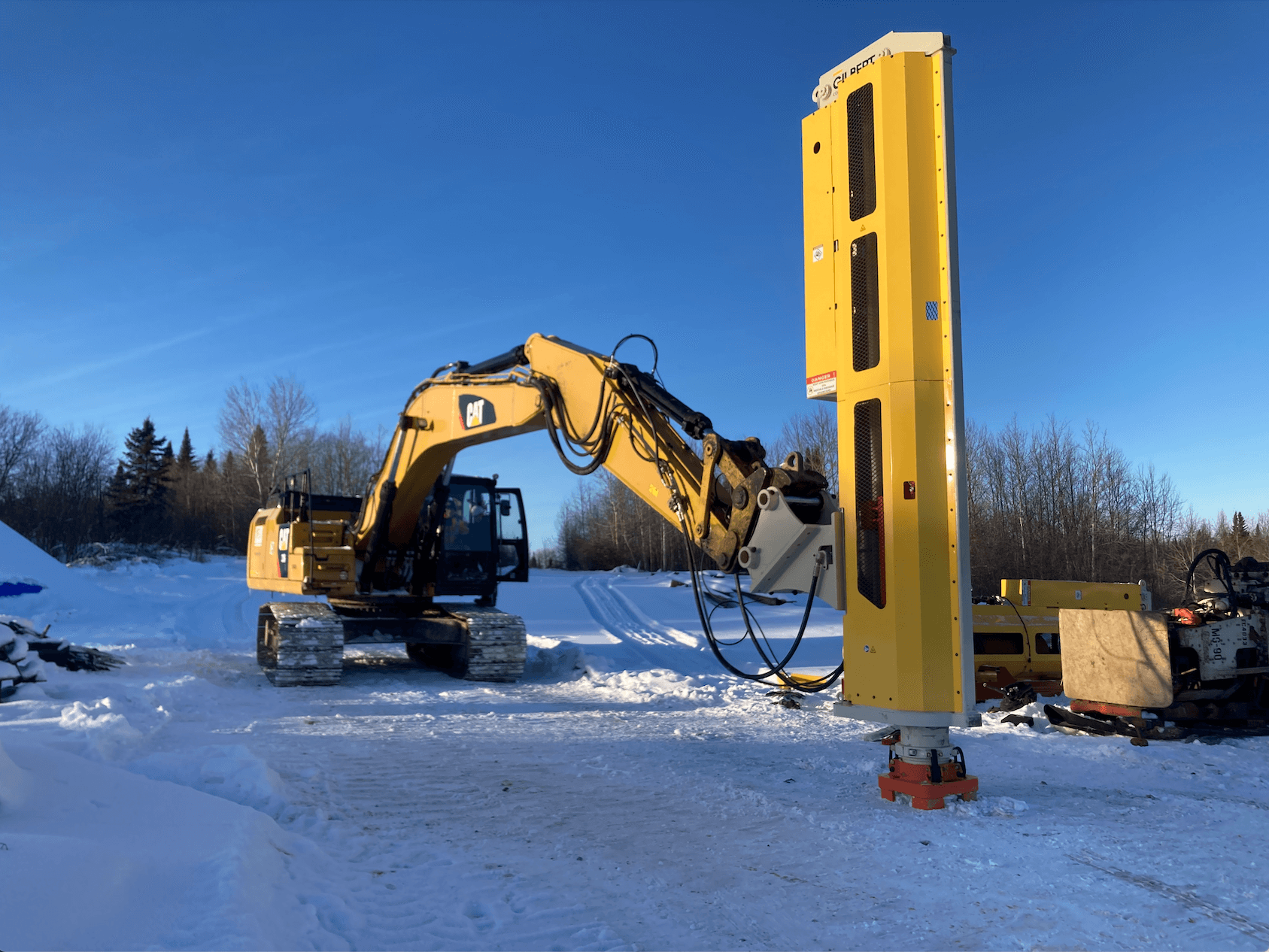

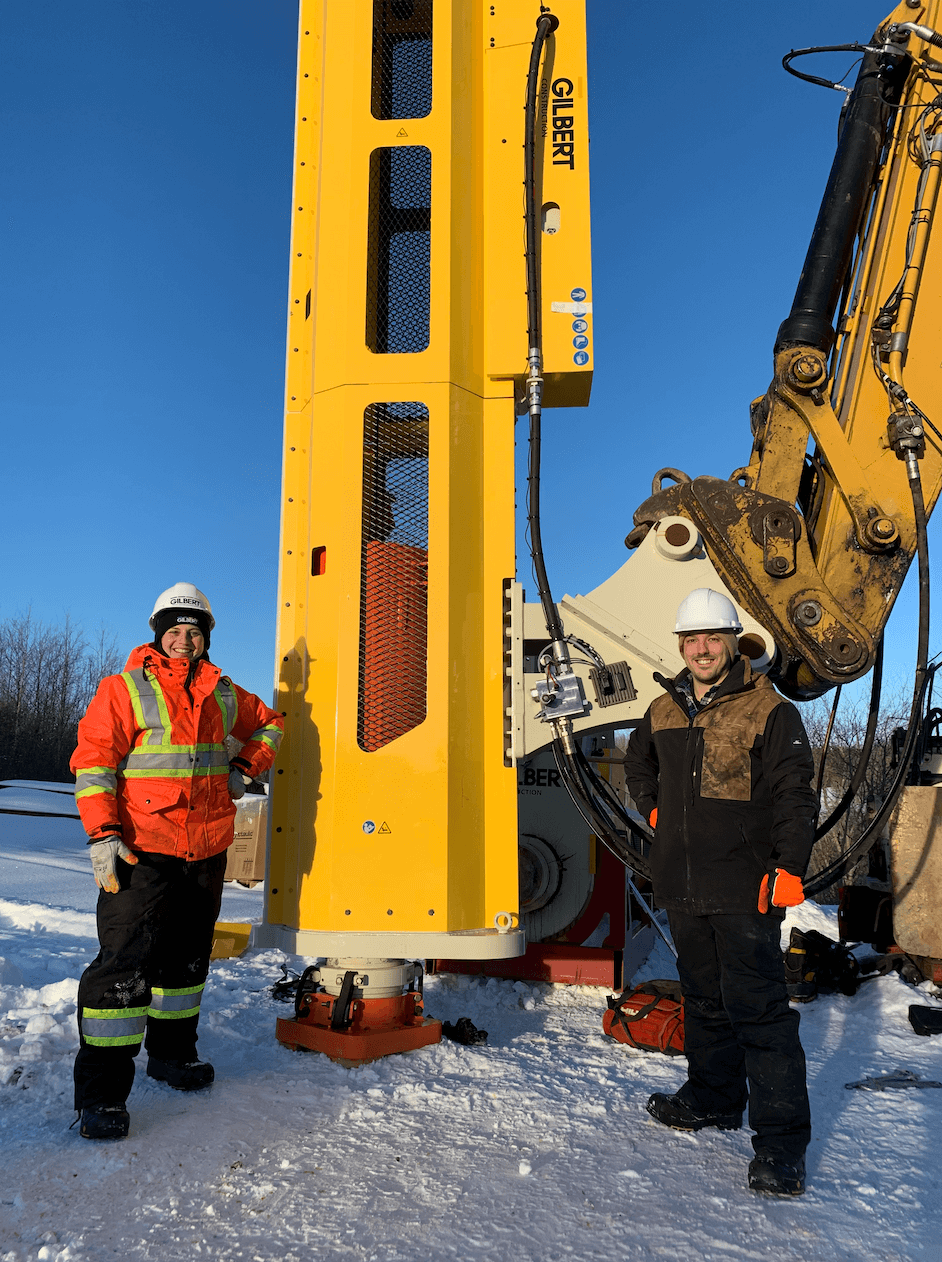

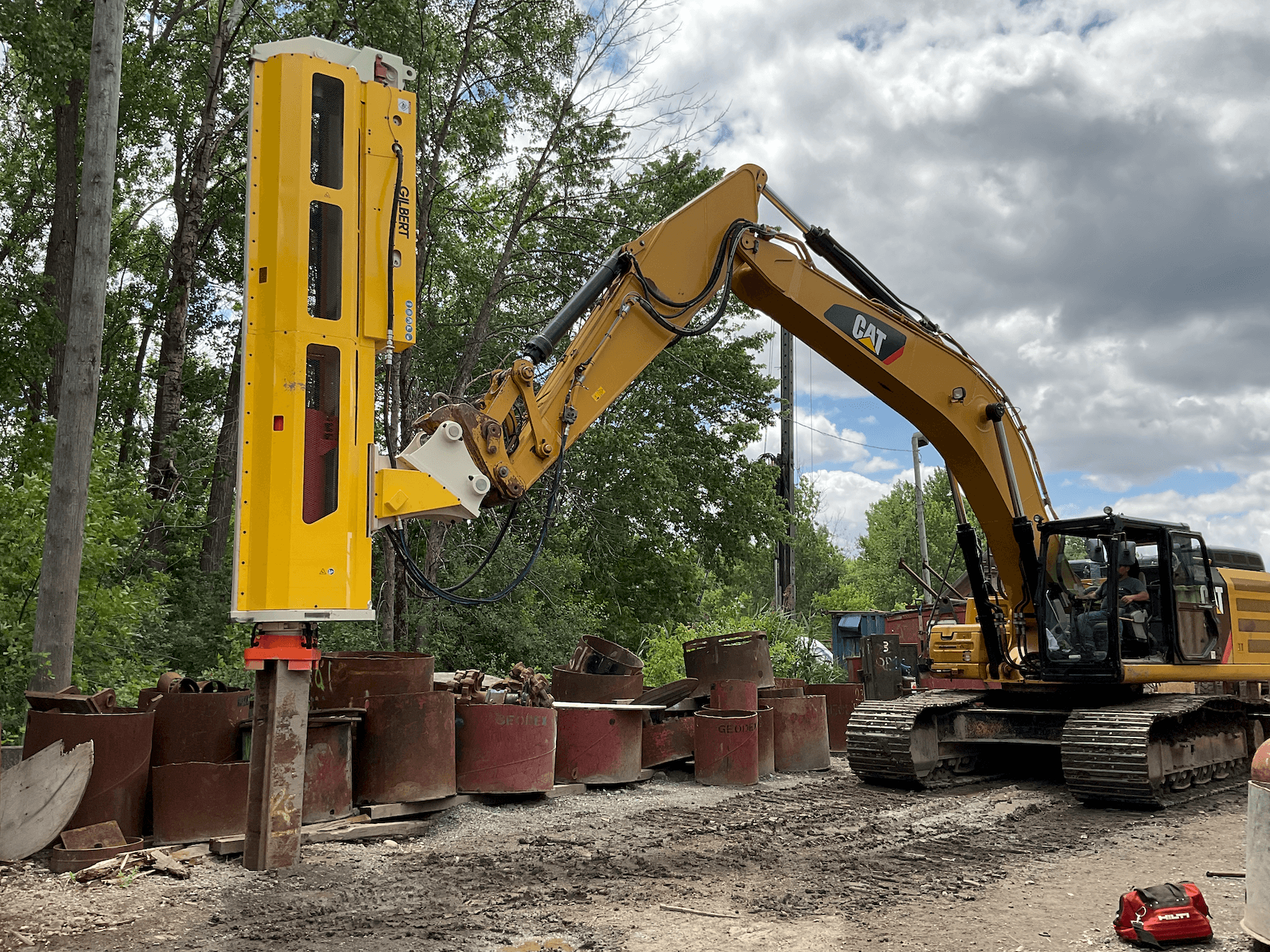

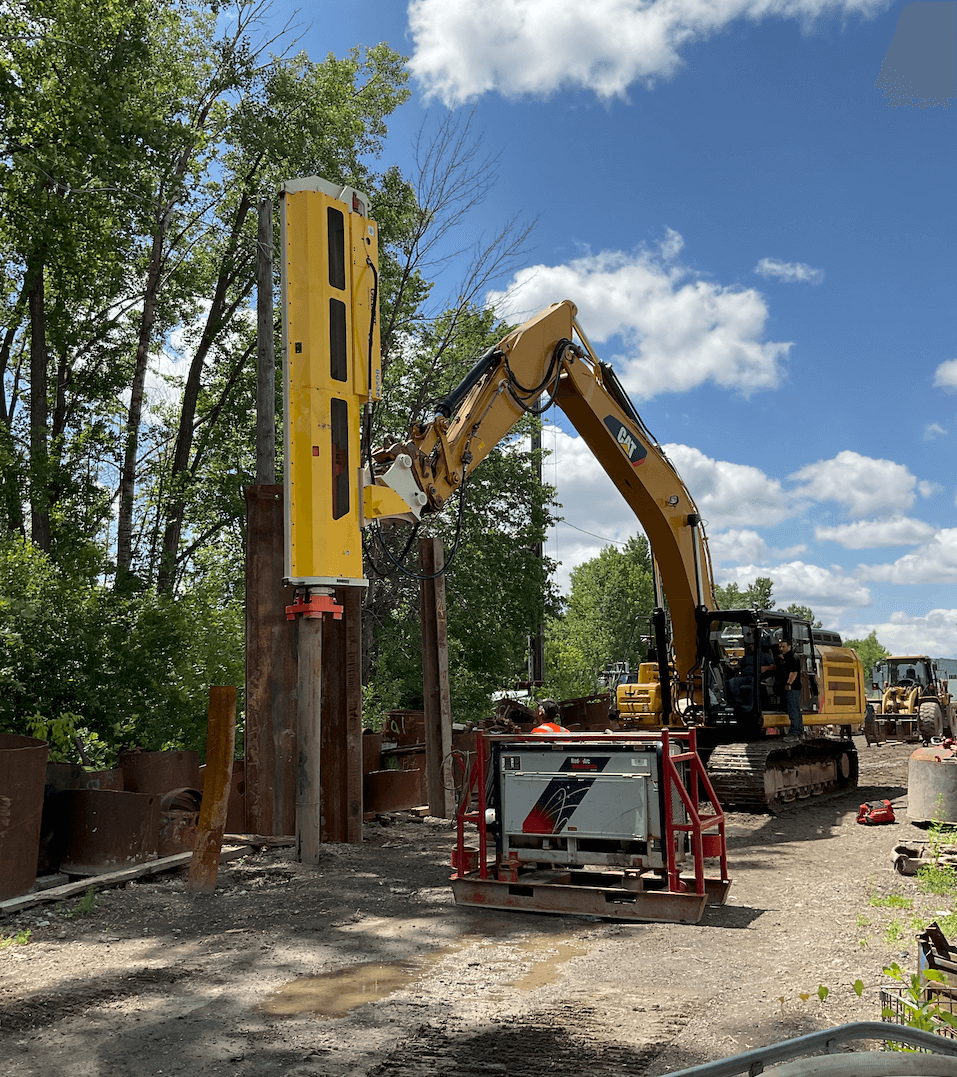

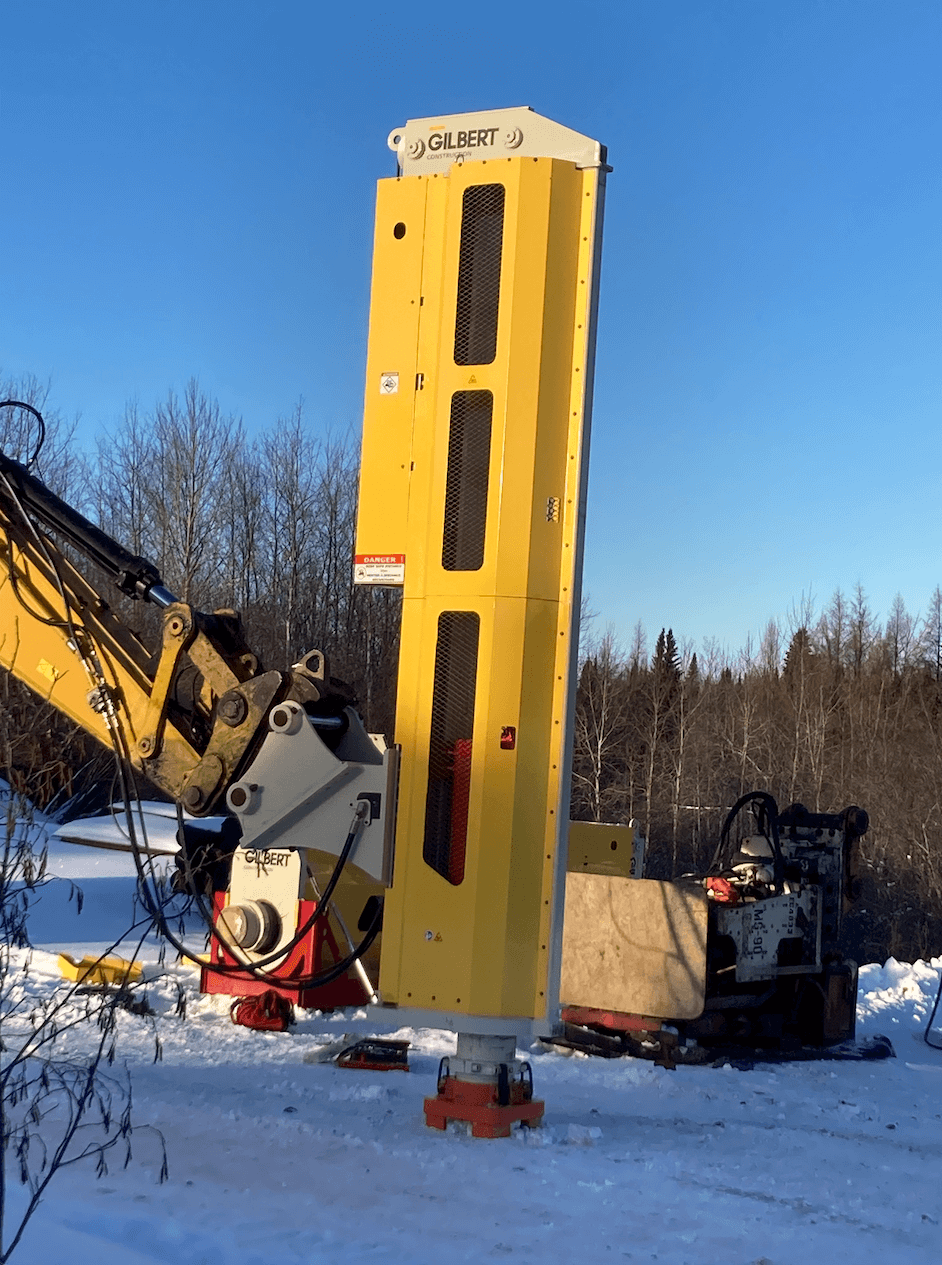

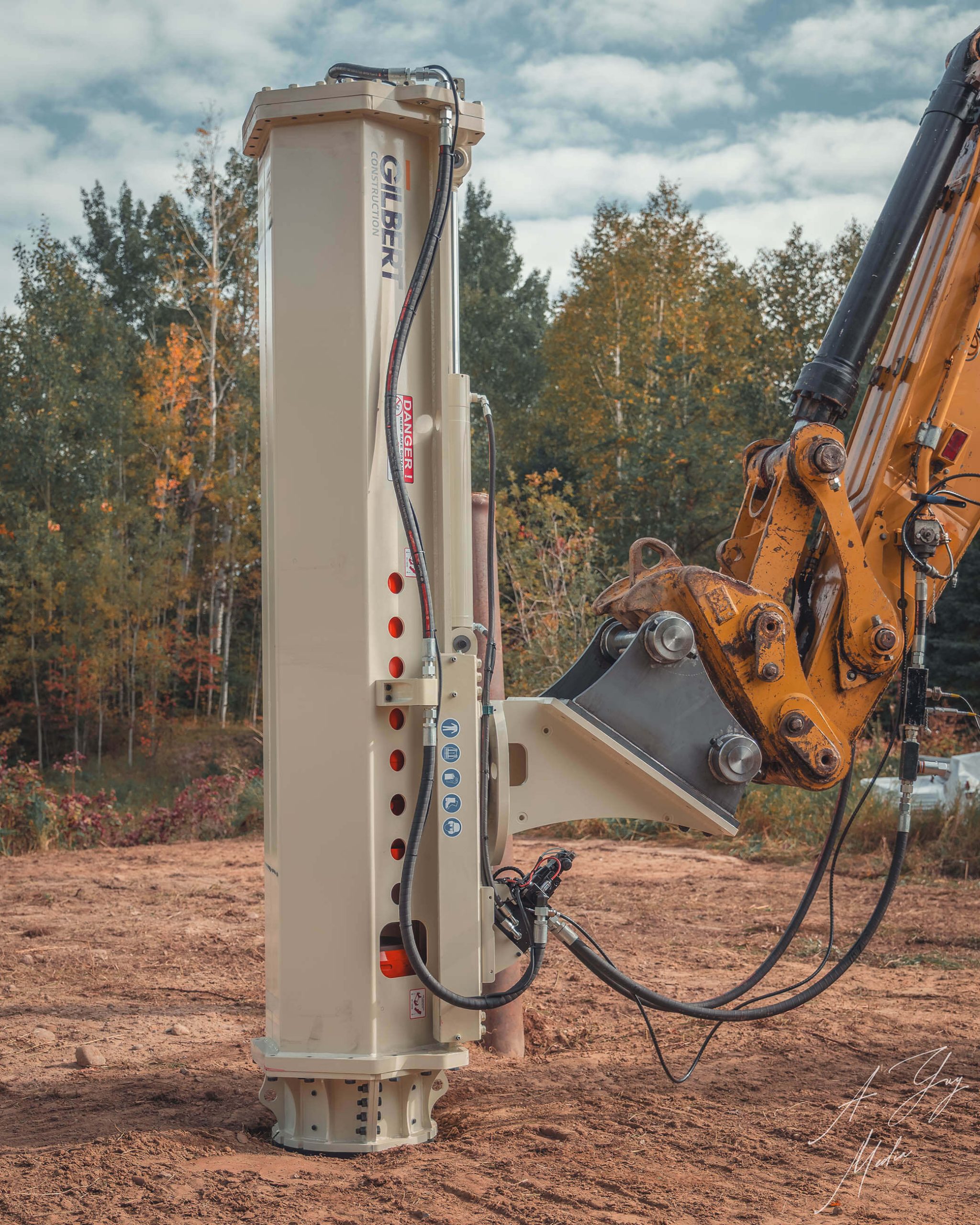

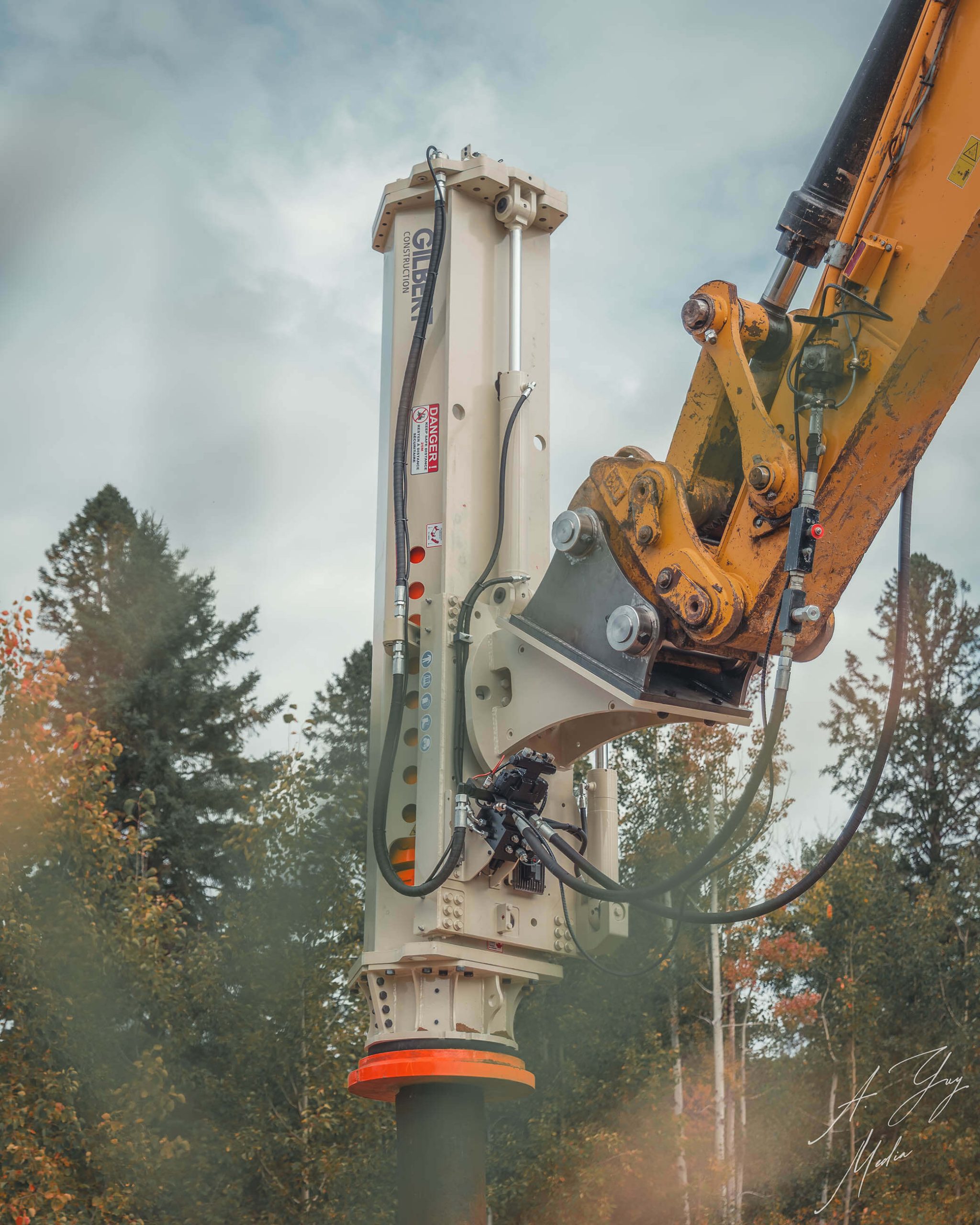

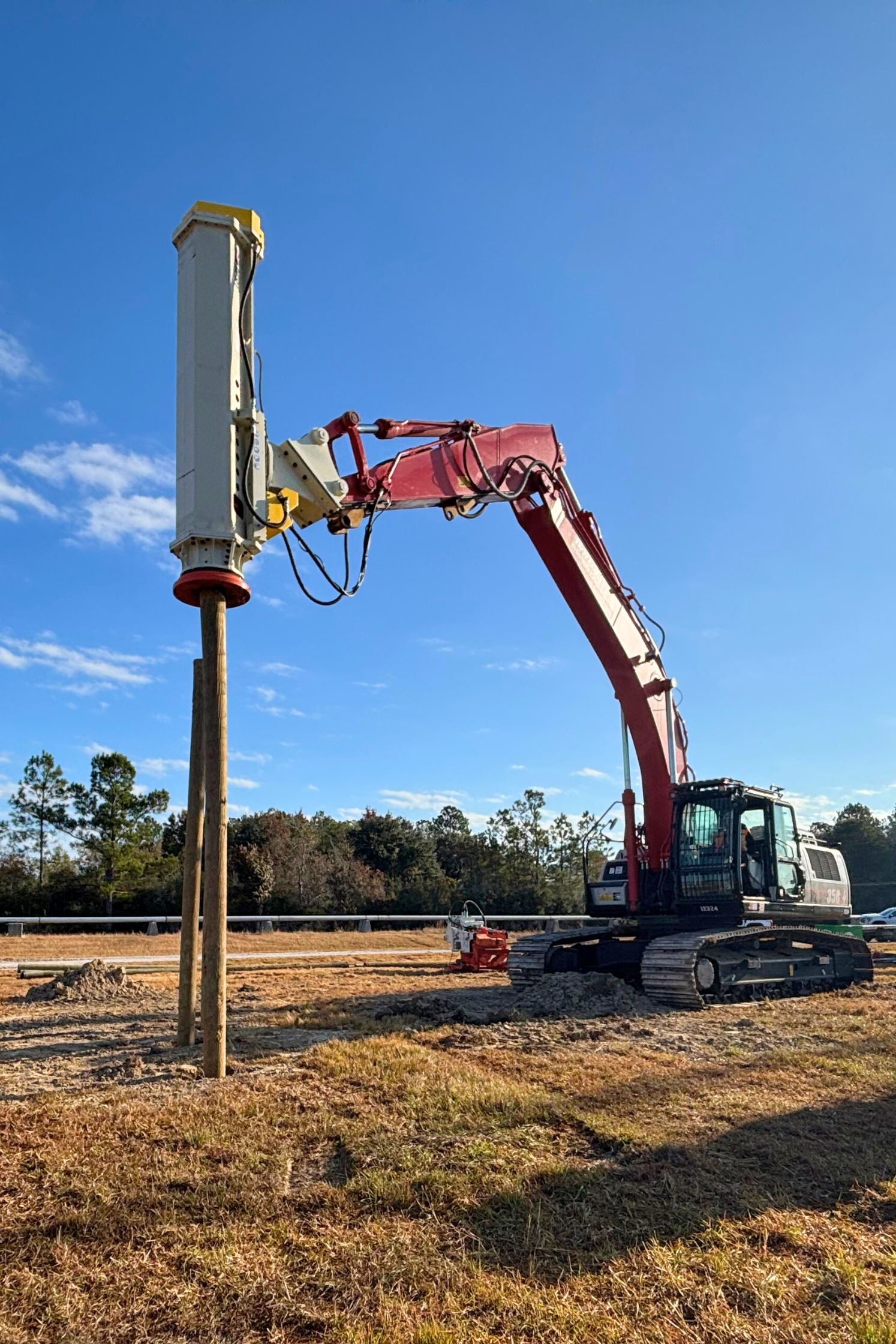

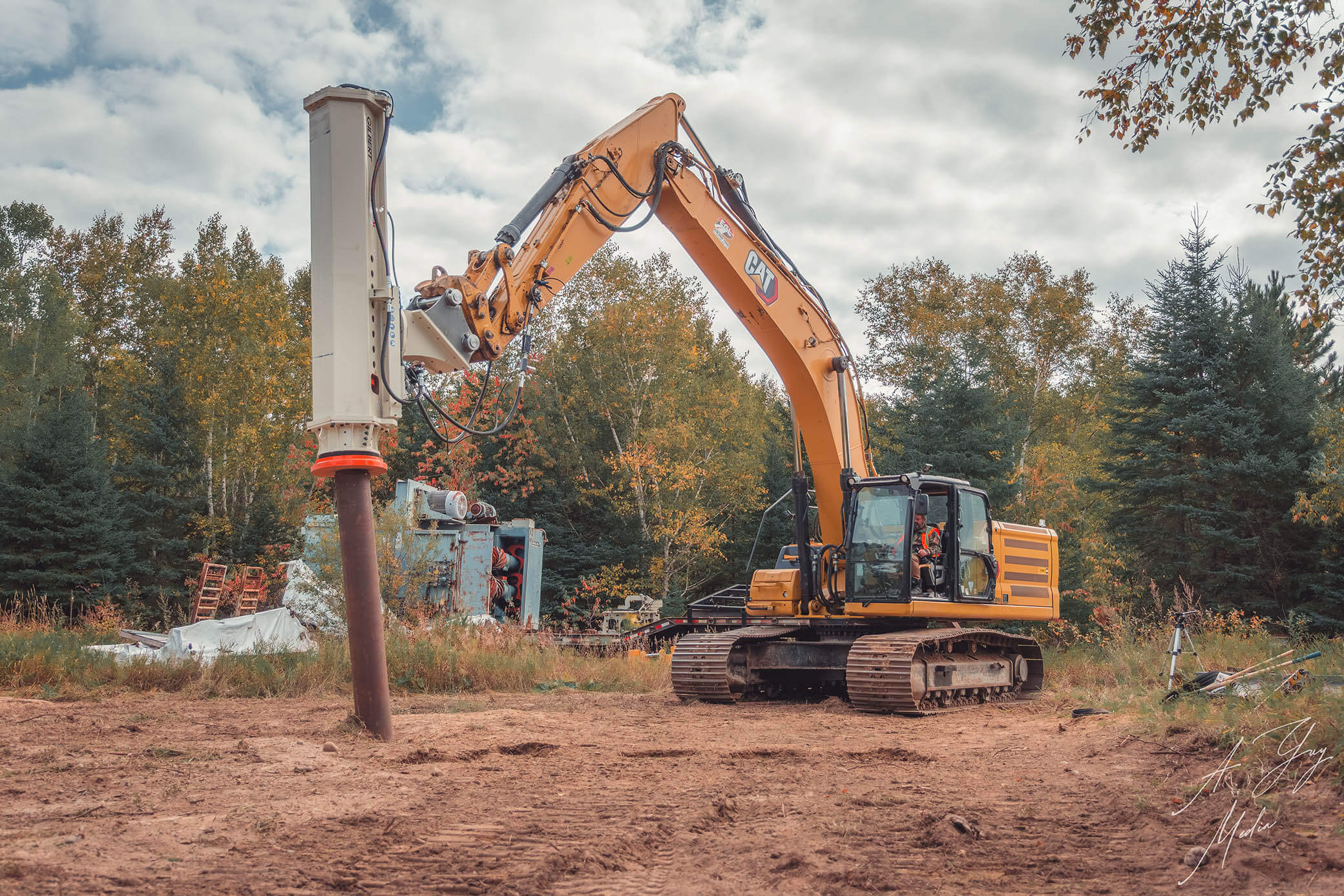

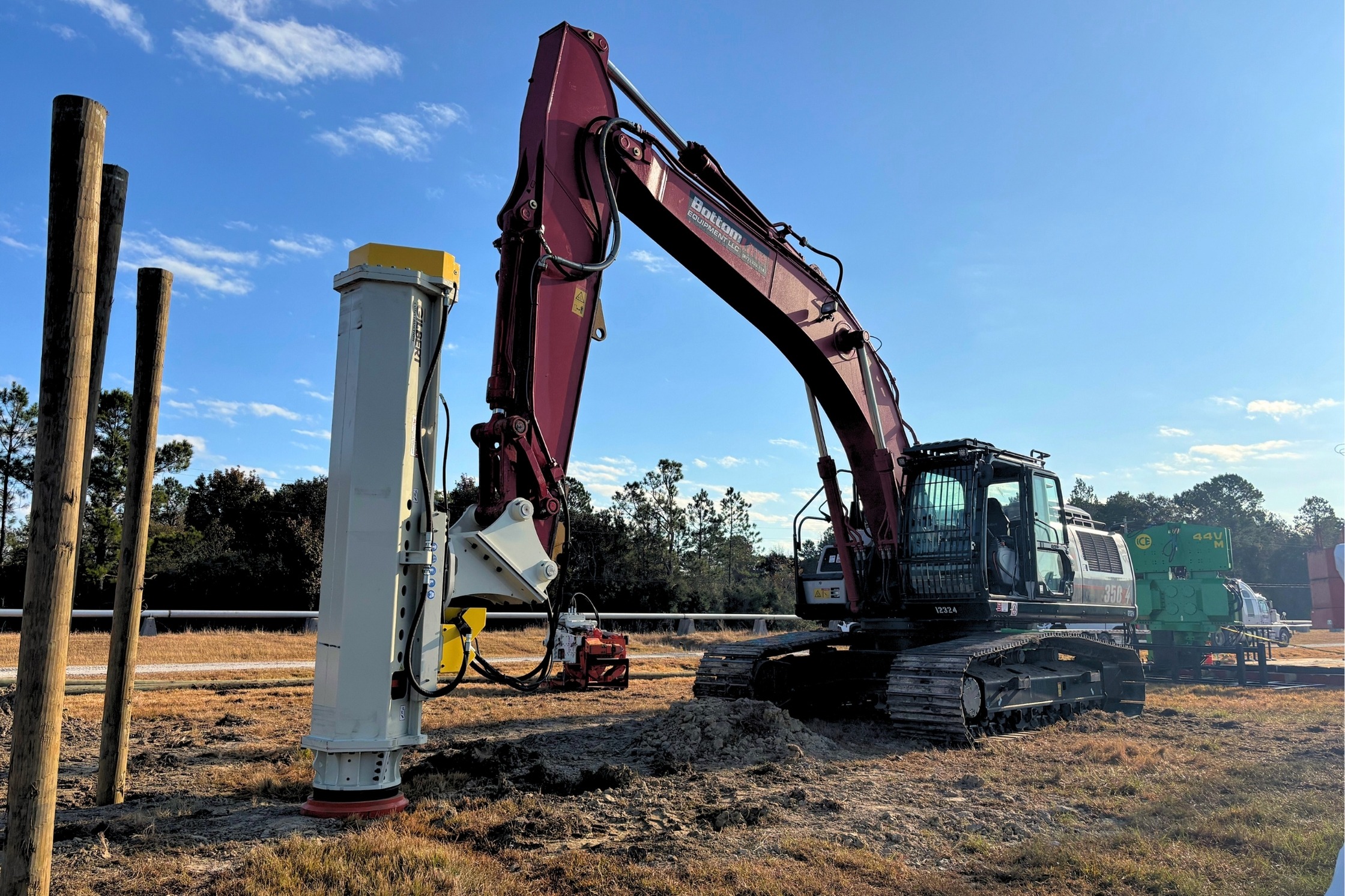

Photo gallery
Technical specs
Changez d'unité de mesure
| Model | Gilbert Hydraulic Drop Hammer |
|---|---|
| Excavator Class (Tons) | 30-45 |
| Maximum Energy (Joules) | 36878 |
| Maximum Vertical travel (m) | 2,5 |
| Mass weight (kg) | 1818 |
| Max Blows Per Minute (bpm) | 22 |
| Net weight (kg) | 4520 |
| Height (mm) | 5359 |
| Oil Flow (L) | 170 |
| Oil Pressure (bar) | 310 |
| Angle Sensor | Included |
| Mass Height Sensor | Included |
| Operating Modes | Automatic (adjustable dwell and stroke parameters) or Manual |
| Model | Gilbert Hydraulic Drop Hammer |
|---|---|
| Excavator Class (Tons) | 30-45 |
| Maximum Energy (Ft.lbs) | 27200 |
| Maximum Vertical travel (ft.) | 8 |
| Mass weight (lbs) | 4000 |
| Max Blows Per Minute (bpm) | 22 |
| Net weight (lbs) | 9964 |
| Height (in.) | 211 |
| Oil Flow (GPM) | 20 |
| Oil Pressure (bar / PSI) | 4500 |
| Angle Sensor | Included |
| Mass Height Sensor | Included |
| Operating Modes | Automatic (adjustable dwell and stroke parameters) or Manual |
