Fast and furiously…efficient
Fastest planer in the world, the Gilbert High Speed Planer runs over 300 boards/min, leaving any competition in the dust.
- Feed speeds from 1000 to 4000 FPM
- ½’’ to 6’’ thickness, 2’’ to 16’’ width, 5’ to 60’ length

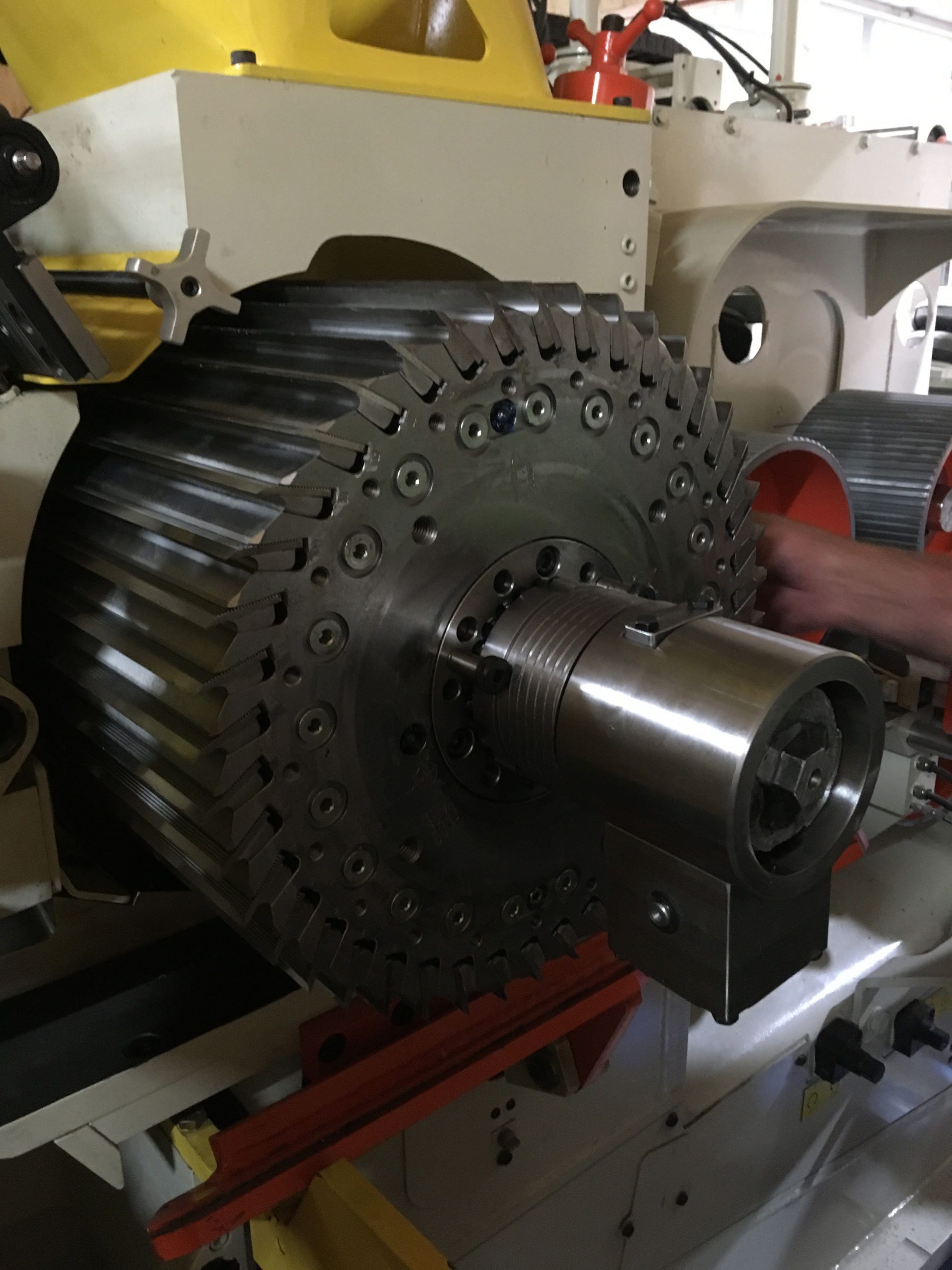

- Cutting circle 16’’ up to 42 knives
Photo gallery
Technical specs
Changez d'unité de mesure
| SPECIFICATIONS | S-SERIES PLANER | 6 ROLL PLANER | HIGH SPEED PLANER |
|---|---|---|---|
| Pull-Through Technology | Yes | Yes | Yes |
| Weight | 21 500 lbs | 36 600 lbs | 41 000 lbs |
| Max lumber width | 12’’ | 12’’ (optional 16’’) | 12’’ (optional 16’’) |
| Max lumber height | 6’’ | 6’’ | 6’’ |
| Max Speed | 1800 FPM | 3000 FPM | 4000 FPM |
| Main Frame | 1 ½’’ thickness | 2’’ thickness | 2’’ thickness |
| Length | 9’ 6’’ | 10’ 9’’ | 12'6'' |
| Number of rolls | 8 | 6 | 8 |
| Length of the rolls | 10’’ | 9 ½’’ | 9 ½’’ |
| Diameter of the rolls | 10’’ | 12’’ | 12’’ |
| Number of motorizations for the feed rolls | 2 x 40 HP | 2 x 60 HP (optional 1 x 75 HP) | 2 x 75 HP |
| Rolls driven by driving shaft | Yes | Yes | Yes |
| 100 % Electric | Yes | Yes | Yes |
| Automatic Positioning system for Cutterheads | Yes | Yes | Yes |
| Lubrication | Centralized manual or automatic (optional) | Automatic | Automatic |
| Cooling System | Optional | Standard | Standard |
| Cutter Head diameter | 11 ½’’ | 14’’ | 16'' |
| Number of knives | Max 26 | Max 36 | Max 42 |
| Type of knives | Flat or corrugated | Flat or corrugated | Flat or corrugated |
| Top roll height adjustment | Automatic with one motor | Manual, Automatic or Grip options | Manual, Automatic or Grip options |
| Side head 4’’ vertical movement | Yes | Yes | Yes |
| Multi pattern side heads | Available | Available | Available |
| Option to add more cutterhead modules for special profiles | Yes | Yes | Yes |
| Option to add splitting module | Yes | Yes | Yes |
| SPECIFICATIONS | S-SERIES PLANER | 6 ROLL PLANER | HIGH SPEED PLANER |
|---|---|---|---|
| Pull-Through Technology | Yes | Yes | Yes |
| Weight | 9 750 kg | 16 600 kg | 16 600 kg |
| Max lumber width | 300 mm | 300 mm (optional 400 mm) | 300 mm (optional 400 mm) |
| Max lumber height | 150 mm | 150 mm | 150 mm |
| Max Speed | 550 MPM | 900 MPM | 1200 MPM |
| Main Frame | 38 mm thickness | 50 mm thickness | 50 mm thickness |
| Length | 290 cm | 328 cm | 381 cm |
| Number of rolls | 8 | 6 | 8 |
| Length of the rolls | 254 mm | 241 mm | 241 mm |
| Diameter of the rolls | 254 mm | 305 mm | 305 mm |
| Number of motorizations for the feed rolls | 2 x 30 kW | 2 x 45 kW (optional 1 x 55 kW) | 2 x 55 kW |
| Rolls driven by driving shaft | Yes | Yes | Yes |
| 100 % Electric | Yes | Yes | Yes |
| Automatic Positioning system for Cutterheads | Yes | Yes | Yes |
| Lubrication | Centralized manual or automatic (optional) | Automatic | Automatic |
| Cooling System | Optional | Standard | Standard |
| Cutter Head diameter | 292 mm | 355 mm | 400 mm |
| Number of knives | Max 26 | Max 36 | Max 42 |
| Type of knives | Flat or corrugated | Flat or corrugated | Flat or corrugated |
| Top roll height adjustment | Automatic with one motor | Manual, Automatic or Grip options | Manual, Automatic or Grip options |
| Side head 4’’ vertical movement | Yes | Yes | Yes |
| Multi pattern side heads | Available | Available | Available |
| Option to add more cutterhead modules for special profiles | Yes | Yes | Yes |
| Option to add splitting module | Yes | Yes | Yes |
Features and advantages
Premium grades
- Many cutterhead designs to offer high quality grades and beautiful lumber
Advanced flexibility
- The Gilbert automatic positioning system, installed on all planers, controls all cutterheads and an unlimited number of additional axes.
- It offers optimal precision and higher grades.
- Easy to use, the automatic positioning system creates rapid changeovers.
- Greater production flexibility, less downtime and a safer environment.
Precision and accuracy
- Driven by electric motorization, the Gilbert planer ensures steady speed, high accuracy planning and safe operations.
- The electric motorization reduces maintenance and operation costs.
- High energy savings.
Safety a priority
- The Gilbert planer rarely stops, minimizing operator interventions and reducing risk of injury.
- The automatic positioning system allows the operator to control the planer from outside the planer room.
- Automatic jointing for the top, bottom and side heads, increases safety.
Our technologies
Gilbert GRIP system
The GRIP System provides: - Increased traction - The control to decrease the gap, giving the opportunity to run more pieces at the same speeds - The ability to adapt to variations in thickness ...
See the article
«Pull-Through» technology
The Gilbert planer runs with a gap between each piece, each piece is independently pulled into the planer. Prevents overlapping and breakage in the machine, allowing the operator to run damaged end...
See the article
4.0 Intelligent Planer
Gilbert offers to control many automatic functions so that the planer auto-adjusts itself and keeps it very simple for any operator to run and produce high quality grades. For more information abou...
See the article
Gilbert GRIP system
The GRIP System provides: - Increased traction - The control to decrease the gap, giving the opportunity to run more pieces at the same speeds - The ability to adapt to variations in thickness on the fly - Maintain a constant pressure on a piece of wood regardless of its thickness - Run smoother and increase the life expectancy of the mechanical components (bushings, trunnions, pins)
«Pull-Through» technology
The Gilbert planer runs with a gap between each piece, each piece is independently pulled into the planer. Prevents overlapping and breakage in the machine, allowing the operator to run damaged end boards with less trim loss. This technology reduces downtime and offers the highest running uptime on the market, over 95%.
4.0 Intelligent Planer
Gilbert offers to control many automatic functions so that the planer auto-adjusts itself and keeps it very simple for any operator to run and produce high quality grades. For more information about our 4.0 Intelligent Planer, please contact a sales representative.
